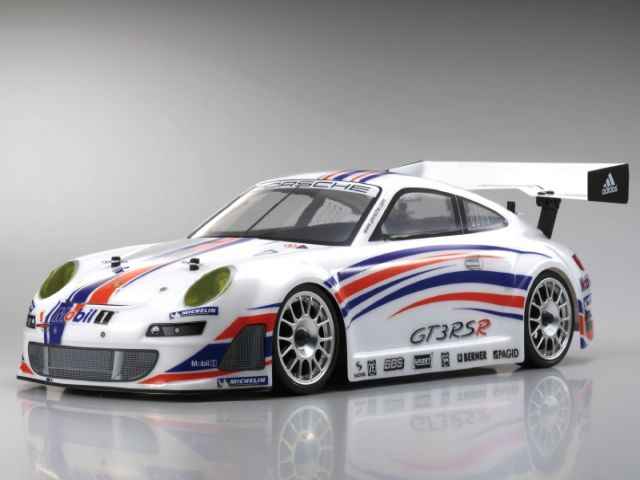

Porsche 911 GT3 RSR

Kyosho Lamborghini C-1All-wheel drive R / C model Porsche 911 GT3 RSR on the chassis of the entry-level Fazer. Chassis Fazer is equipped with an internal combustion engine Kyosho nitro type GF-16SG and a fully installed and configured radio system Kyosho Perfex/Futaba KT-6.



  • Fully assembled and ready to set Porsche 911 GT3 RSR , requires only batteries and fuel!Porsche 911 GT3 RSR
  • Full driving Fazer chassis with cardan all-wheel drive is perfect for beginners and well controlled on the track
  • Easily customizable internal combustion engine Kyosho GF-16SG with a working volume of 2.5 cm.cube. and the system is configured exhaust
  • A carburetor engine is equipped with two fuel needles for fine adjustment of the feed mixture
  • Two jaw clutch and steel clutch bell roller bearing allows for a very long time not to resort to repairs and prevention
  • The entire drive system is assembled on ball bearings for minimal friction losses, a total of 18 bearings!Porsche 911 GT3 RSR
  • Oil-filled shocks with adjustable preload spring rebound
  • Easy and very hard combo chassis made of aluminum and plastic
  • Front differential locked for more precise control and a “pull” model using the gas, even of the most difficult turns on the tracks
  • To facilitate starting of the engine, fuel tank capacity of 75 cm.cube. equipped with fuel pump
  • All the electronics are optimally protected from dust and moisture in a separate box



CharacteristicsPorsche 911 GT3 RSR

Scale 1:10
The chassis length is 383 mm
The chassis width 200 mm
Height 92 mm ( 128 mm with case )
Wheelbase 260mm
The ground clearance is 5 mm
Front track: 176 mm
Rear track 176мм
Bus 64х24 mm
Engine Kyosho GF-16SG (2.6 cm3) with manual starter
The gear ratio of 7.06:1
Weight 1775 g

IncludedPorsche 911 GT3 RSR

  • Fully assembled chassis Fazer models
  • Mounted engine Kyosho GF-16SG with manual starter
  • Installed and configured Perfex servos/Futaba KS-101BK
  • Proportional remote control gun type Perfex Kyosho/Futaba KT-6
  • Fully painted and trimmed body with glued labels
  • Wheel wrench, standard heat of candles, bottle for refilling fuel tank
  • Manual
